Metric Male 60°Fittings
Item
Description
10611,10612

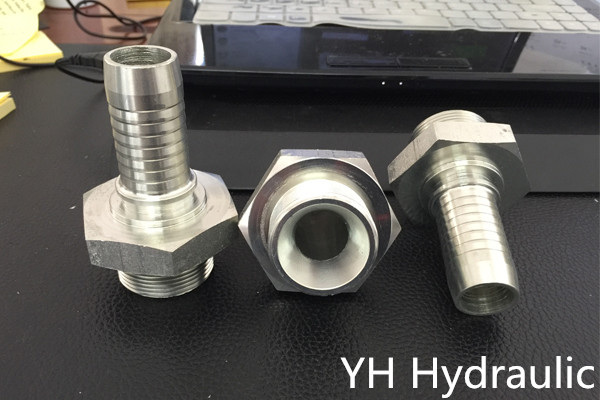

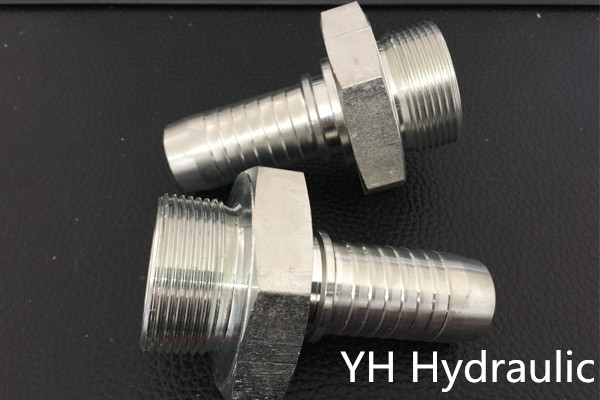

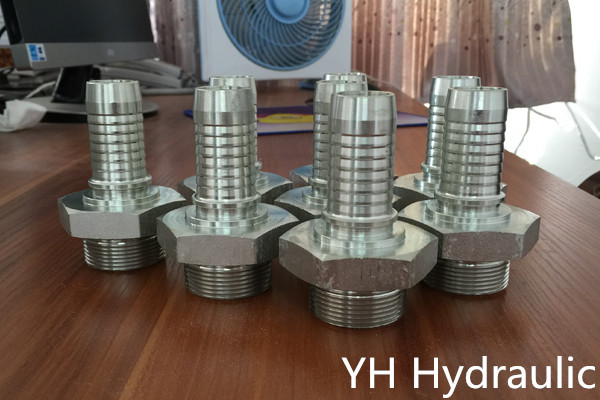

Metric male 60°fittings 10611 is metric male 60°cone seat with bonded seal. This fitting is widely used for many heavy machines connection. YH Hydraulic offer short tail of metric male 60°fittings for R1AT, R2AT hydraulic hoses, and longer tail for four wire hoses like R12, 4SP, 4SH hydraulic hoses. YH Hydraulic can accept OEM service for the fittings productions. As a factory, we can promise you a good quality.

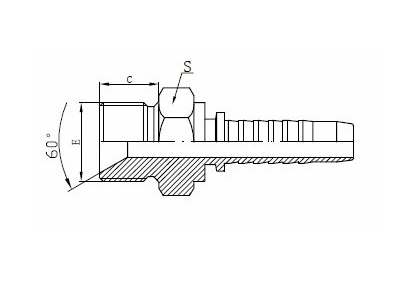

METRIC MALE 60°CONE SEAT WITH BONDED SEAL
| 代号 | 螺纹E THREAD E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | 公称内径DN | 标 号 DASH | C | S | |
| 10611-14-04 | M14X1.5 | 6.00 | 4.00 | 14.00 | 17.00 |
| 10611-16-05 | M16X1.5 | 8.00 | 5.00 | 14.00 | 17.00 |
| 10611-18-06 | M18X1.5 | 10.00 | 6.00 | 15.00 | 19.00 |
| 10611-22-08 | M22X1.5 | 12.00 | 8.00 | 14.00 | 24.00 |
| 10611-24-10 | M24X1.5 | 16.00 | 10.00 | 17.00 | 27.00 |
| 10611-27-10 | M27X1.5 | 16.00 | 10.00 | 18.00 | 30.00 |
| 10611-30-12 | M30X1.5 | 20.00 | 12.00 | 18.00 | 32.00 |
| 10611-33-16 | M33X2 | 25.00 | 16.00 | 20.00 | 36.00 |
| 10611-42-20 | M42X2 | 32.00 | 20.00 | 20.00 | 46.00 |
| 10611-45-20 | M45X2 | 32.00 | 20.00 | 20.00 | 50.00 |
| 10611-52-24 | M52X2 | 40.00 | 24.00 | 20.00 | 55.00 |

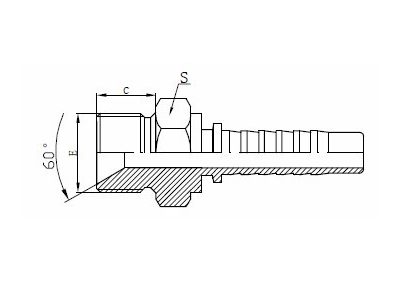

METRIC MALE 60°CONE SEAT WITH BONDED SEAL FOR SPIRAL HOSE
| 代号 | 螺纹E THREAD E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | 公称内径DN | 标 号 DASH | C | S | |
| 10612-22-08 | M22X1.5 | 12 | 8 | 14 | 24 |
| 10612-24-10 | M24X1.5 | 16 | 10 | 17 | 27 |
| 10612-27-10 | M27X1.5 | 16 | 10 | 18 | 30 |
| 10612-30-12 | M30X1.5 | 20 | 12 | 18 | 32 |
| 10612-33-16 | M33X2 | 25 | 16 | 20 | 36 |
| 10612-42-20 | M42X2 | 32 | 20 | 20 | 46 |
| 10612-45-20 | M45X2 | 32 | 20 | 20 | 50 |
| 10612-52-24 | M52X2 | 40 | 24 | 20 | 55 |
